PRODUCT
RANGE – BY RELIABLE ENGINEERING COMPANY : |
|
 |

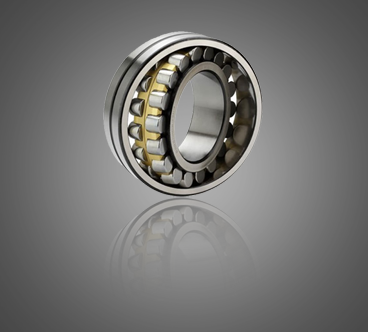

This type features a large load rating capacity and
self-aligning capability. Cylindrical
and Tapered bore are available, as are Adapter
assemblies and Withdrawal sleeves. Suitable for low or
medium speed applications which involve heavy or impact
loading. |
| |
|
|
|
|
|
 |

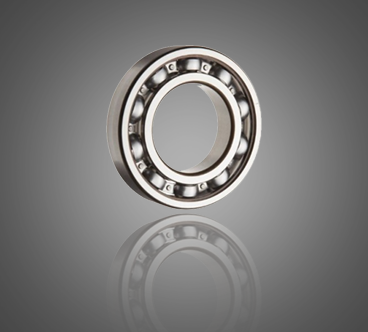

Available as Single or Double Row type. Features include
open, one or two shields, one or two
seals and locating snap ring. Also available as Extra
small, Miniature and Maximum types. The most popular type of
bearing, it supports both radial load and a certain degree
of axial load in both directions simultaneously. |
| |
|
|
|
|
|
 |

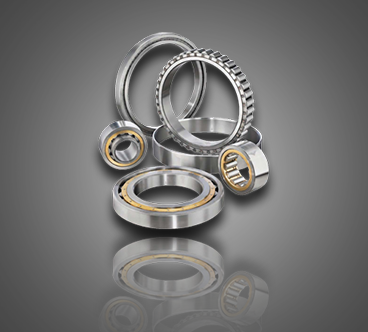

Available as Single, Double or Four Row.Features
include Thrust Collars, parallel or tapered bore and
lubrication holes and grooves.These feature high radial
load capacity as the rollers and raceway are in linear
contact. Suitable for heavy radial and impact loading. |
| |
|
|
|
|
|
 |

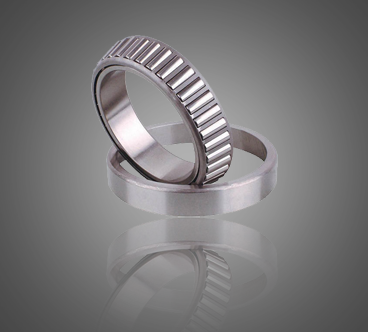

Available as Single or Double row, and in Metric and
Inch sizes. Can be produced as either TDO (one double
cup and two single row cones) and TDI (one double cone
and two single row cups) Designed so that cups, cone
and rollers have tapered surfaces whose apexes converge
at a common point on the bearing axis. This type is
suitable for applications involving heavy or impact
loading. |
| |
|
|
|
|
|
 |

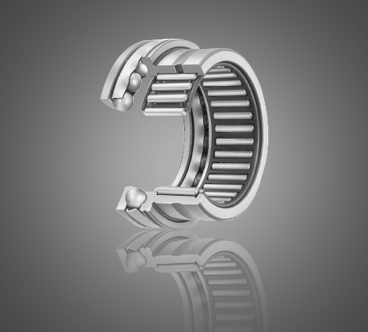

Designed to be small in sectional height for products
with space constraints. Available
as Drawn Cup, Machined Ring, Thrust, Stud type (Cam
followers), Yoke type (roller followers)
and as Miniature One way Clutches. Compact, highly
rigid and superior in load carrying performance.
Excellent for carrying oscillating loads. Now greatly
used as miniature clutches in office equipment. |
| |
|
|
|
|
|
 |

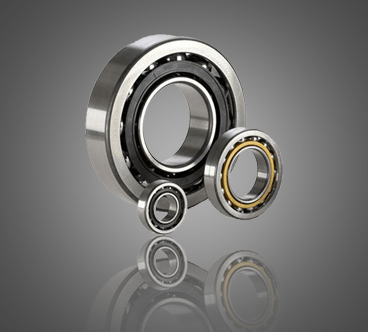

Available as Single or Double row, Matched Pair and
Four Point Contact. Designed for high
accuracy good high-speed performance. Carries a
combined load, axial and radial. |
| |
|
|
|
|
|
 |

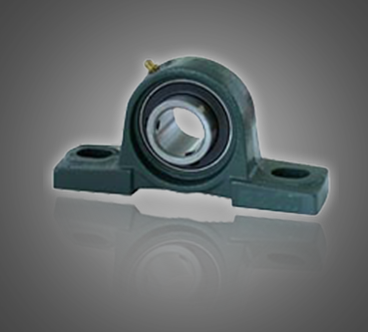

Units Produced as units consisting of pre~lubricated
ball bearings and housings of various shapes. Types
available include Pillow block, Flanged, Take-up,
Cartridge, Light Duty,
'Clean' Series (light alloy) & Stainless. Good at
aligning themselves using the spherical
fitting surface between the bearing and the housing.
Provide excellent load resistance. |
| |
|
|
|
|
